Rotary Screw Air Compressors

Lubricated Rotary Screw Air Compressors

A rotary screw air compressor is a positive displacement compression system that includes a pair of matching helical screws. An oil-flooded rotary screw compressor includes a lubricant that fills the gap between the rotors, which creates an air-tight hydraulic seal and transfers mechanical energy between the two rotors. The air moves through the threads as the screws rotate, and the meshing screws force the air through the compressor.

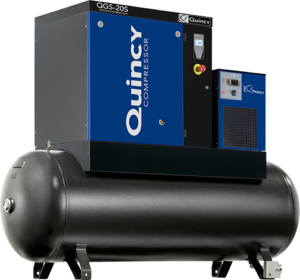

QGS

The QGS product line includes 5-30 hp belt screw air compressor models that include a long-life V-belt drive, high efficiency intake filter and a robust TEFC motor. The standard quiet enclosure is designed to reduce vibration and noise levels. The eight-thousand-hour premium synthetic fuel features a low oil carryover. An integrated dryer and tank mount option is also available.

  • 5-30 hp, Belt Drive
  • 40-100 hp, Gear Drive
  • 16-460 acfm, 125-150 psig
  • 62-69 dBA
  • Integrated dryer option
  • True Blue 5-Year Warranty

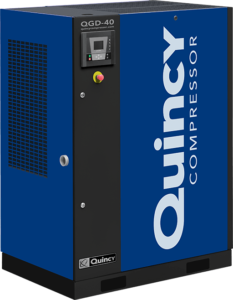

QGD

The QGD rotary air compressor line is specifically designed to provide reliable compression in the most challenging applications. The Airlogic 2 advanced control enables the compressor to operate with maximum efficiency. With a sound level as low as 66 dBA, you’re assured of quiet operation. The QGD is also designed for easy serviceability.

  • 15-60 hp, Gear Drive
  • 70-281 acfm @ 125 psig
  • Airlogic2 advanced control
  • Ease-of-maintenance design
  • Industrial-grade enclosure
  • 5-Year True Blue Warranty

QSI

Quincy’s premium QSI product line includes 50-350 hp premium industrial screw compressors regarded as among the most reliable direct drive models you’ll find anywhere. The QSI is available with Power$ync, a revolutionary variable capacity control system that enables the compressor to function as a base-load machine as well as a part-load machine. The 130-thousand-hour design ensures efficient, long-lasting performance.

  • 50-350 hp
  • 220-1500 acfm, 100-150 psig
  • Expandable PLC Control
  • Ease-of-maintenance design
  • Industrial-grade enclosure
  • 10-Year Royal Blue Warranty

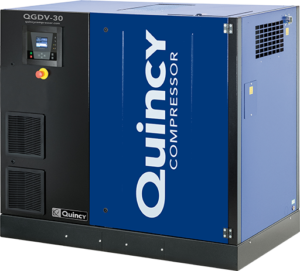

QGDV

The Quincy QGDV series is a high performance variable speed rotary screw compressor package that can be used in a wide range of applications. All QGDV units from 15 horsepower to 30 horsepower feature industry leading efficiency and serviceability. The models can be configured as basic units or can be equipped with some basic options to best fit your application. All QGDV models have low sound levels, small footprint and the lowest total cost of ownership in the industry.

  • 15-30 hp, Gear Drive
  • 70.8-141.3 acfm @ 125 psig
  • Airlogic2 advanced control
  • Ease-of-maintenance design
  • Industrial-grade enclosure
  • 5-Year True Blue Warranty

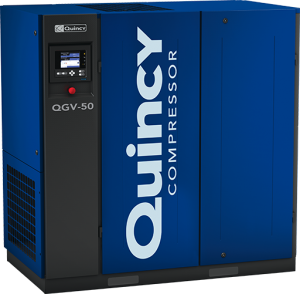

QGV®️

The QGV®️ is a 40-200 hp variable speed compressor featuring a 100,000+ hour direct-drive air-end for reliable, long-lasting performance. The QGV®️ is also designed and built for reduced power consumption, making it extremely energy-efficient. What’s more, the QGV®️ industrial screw compressor includes a standard low-sound enclosure that provides sound levels as low as 68 dBA. You’ll also appreciate the QGV’s easy serviceability
